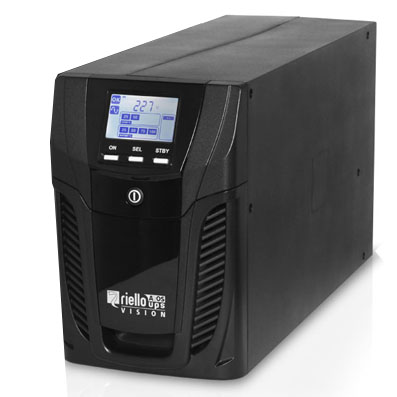

SAI RIELLO VISION TOWER 2000- 2000 VA-10` LINE INTERACTIVE 6 x IEC 320

La serie VISION está disponible en las versiones Tower (VST), para los modelos de 800VA a 2000VA con tecnología sinusoidal digital.

La serie VISION, con su avanzada comunicación y opciones de conectividad es la solución ideal para aquellos usuarios que requieren una elevada protección y una gran versatilidad del sistema de alimentación.

VISION es la mejor protección para periféricos de red, servidores convencionales y sistemas backup de red.

Superior protection
The Vision range uses Line Interactive technology and provides a sinusoidal output. This technology provides efficiency levels of 98% and therefore reduced energy consumption. It also ensures a high level of protection against mains power disturbances. The automatic voltage regulator (AVR) provides protection from surges, overvoltages and undervoltages, without battery intervention. Reduced battery usage ensures that the battery set is 100% available for mains power supply failures and is able to provide greater autonomy. EMI filters then provide further protection from voltage surges and transients.
When the mains power supply fails, the load is powered by the inverter and receives a perfectly sinusoidal supply for maximum power continuity and reliability. With energy savings in mind, the Vision range features a shut-off button to reduce energy consumption to zero during periods of
prolonged inactivity.

High availability
An EnergyShare socket allows loadshedding and the shutdown of less sensitive peripheral devices to extend battery runtime for critical loads. ?Hot Swap? batteries can be removed via the front panel for easy and safe UPS maintenance. Battery test facility to detect deteriorating battery performance. Deep discharge protection to reduce battery ageing.

Versatility
Cold Start function to allow the UPS to power up with no mains power supply present.

LCD display
Vision models have a backlit LCD display providing UPS status information, load and battery performance.

Advanced communications

Multi-platform communication for all operating systems and network environments: PowerShield3 supervision and shutdown software for Windows operating systems 8, 7, 2008, Vista, 2003, XP, Linux, Mac OS X, Sun Solaris, VMware ES X and other Unix operating systems.
USB or RS232 serial port interface (selectable)
Expansion slot for interface boards
status, measurements, alarms and input, output and battery parameters available on LCD display.
Features

EnergyShare socket
Ability to switch on the UPS in the absence of mains power (Cold Start)
Batteries are user replaceable without switching off equipment and without interruption to the load (Hot Swap)
Maximum reliability and protection of PC s thanks to PowerShield3 monitoring and shutdown software, which can be downloaded free
Fully configurable using UPS Tools configuration software
Highly reliable batteries (automatic and manually-activated battery test)
Built-in short circuit protection
Auto restart (when mains power is restored, after discharge of the batteries)
GS/Nemko safety mark.


Modelos VST 2000
ENTRADA
Potencia evaluada 2000 VA
Tensión 230 Vca Vac
Frequencia 50 o 60 Hz rango automático
Tolerancia de frecuencia ± 5%
SALIDA y SALIDA INVERSOR
Potencia evaluada 2000 VA
Potencia activa 1600 W
Número de fases 1
Forma de onda Sinusoidal
Frequencia 50 o 60 Hz rango automático
BATERIA
Tipo de plomo-ácido sellada sin necesidad de mantenimiento
Tiempo de recarga 4÷6 h
CONDICIONES AMBIENTALES
Color Gris oscuro RAL 7016
Conformidad de seguridad EN 62040-1-1 y directiva 2006/95/EC
Conformidad EMC EN 62040-2 y directiva 2004/108 EC
Grado de protección 2
Sobretensión admitida IEC 801-5 6 KV 1.2 / 50 µs, 3KA 8/20 µs diferencial
Protecciones sobrecorriente - cortocircuito - sobretensión - caída de tensión - térmica - excesiva descarga de las baterías
Ruido <50 dBA a 1 m
Temperatura de funcionamiento 0 ÷ 40 °C
Humedad relativa <95% sin condensación
Tomas de salida 4 IEC 10A
DATOS
Peso 18,5 Kg
Dimensiones (al an fo) 247x160x443 mm
