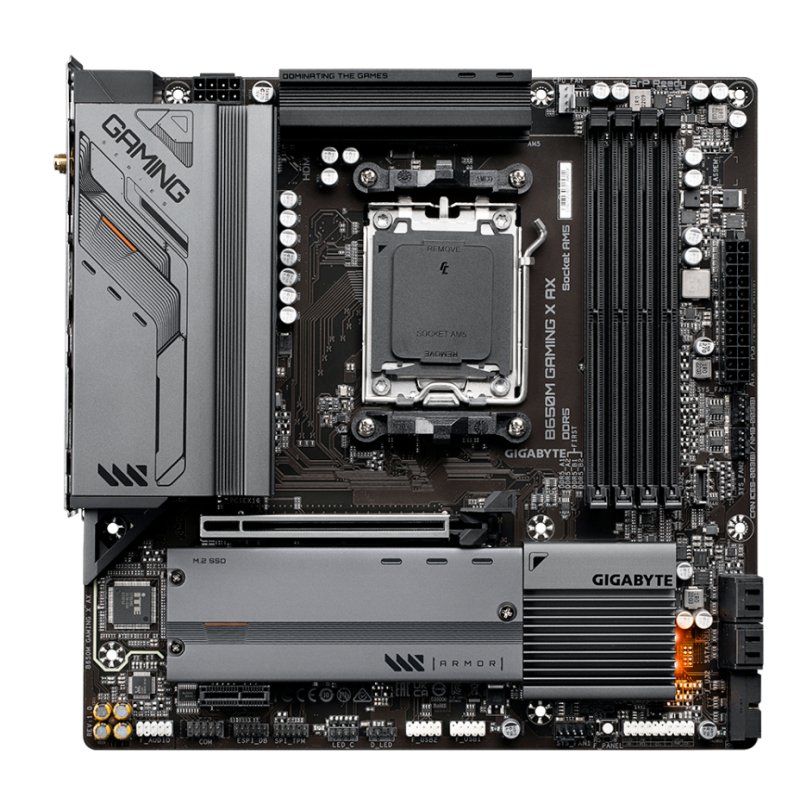

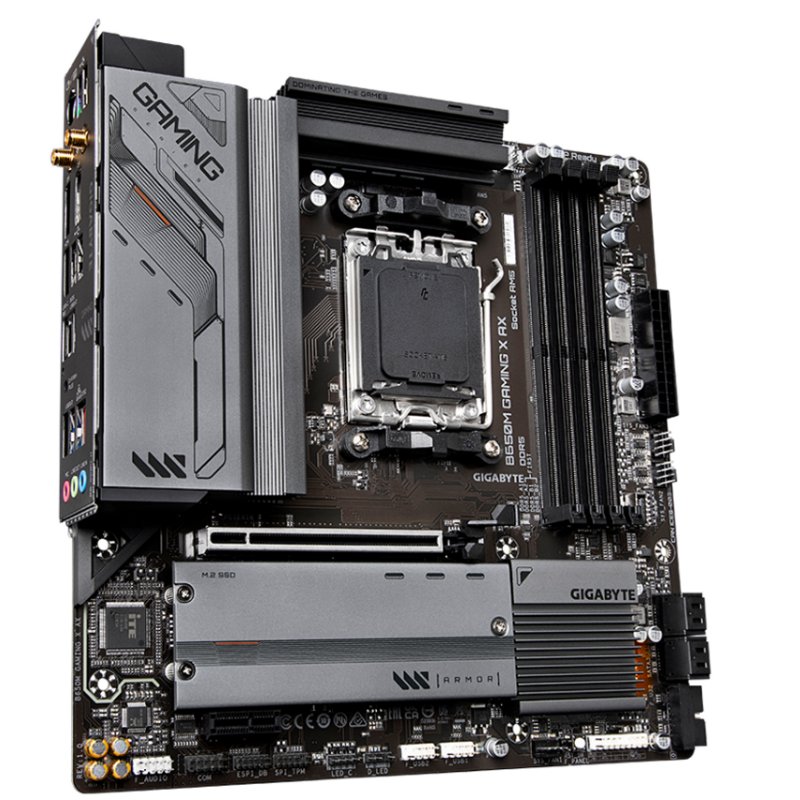

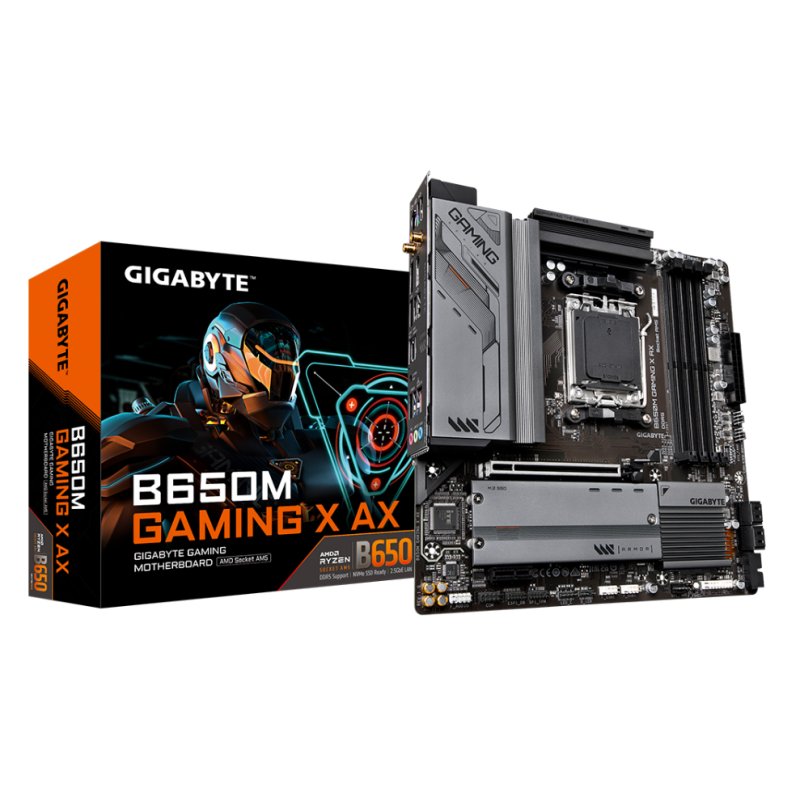

PLACA BASE GIGABYTE AM5 B650M GAMING X AX M-ATX 4XDDR5 4XSATA6 1XUSB-C 1XUSB 3.2 2XUSB 2.0
| Marca | Gigabyte |
| Modelo | B650M GAMING X AX |
| Plataforma | - ATX (30.5 cm x 24.4 cm) |
| Chipset | - AMD B650 |
| CPU Soportados | - AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors |
| Memoria | - Support for DDR5 6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules - 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory - Dual channel memory architecture - Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules - Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Slots Expansión | - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2) |
| Gráficos | - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |

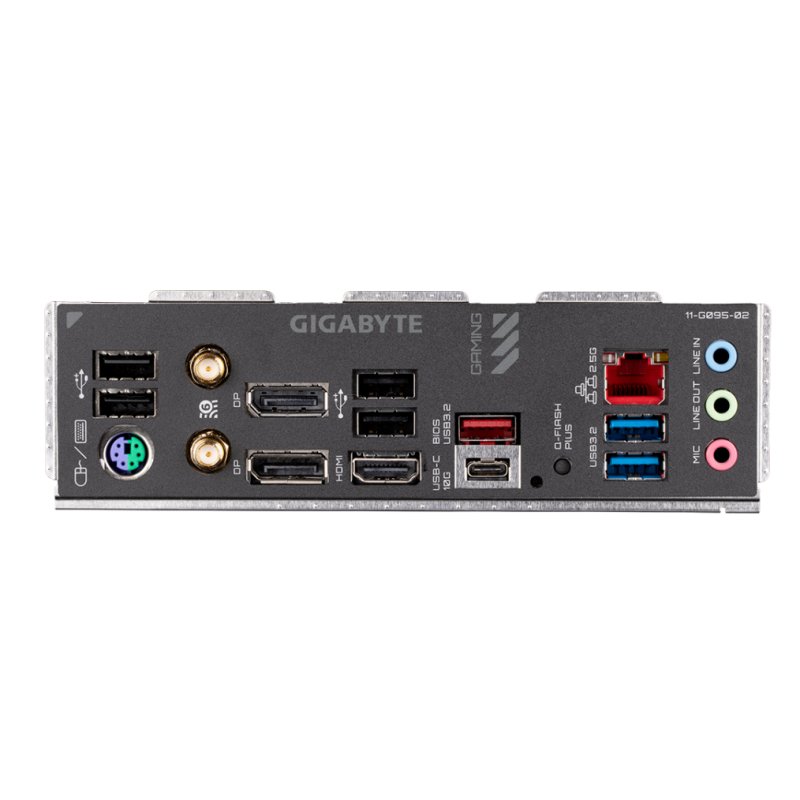

| Puertos E/S,Conectores | Conectores Internos E/S- 1 x 24-pin ATX main power connector - 1 x 8-pin ATX 12V power connector - 1 x 4-pin ATX 12V power connector - 1 x CPU fan header - 1 x water cooling CPU fan header - 2 x system fan headers - 1 x system fan/water cooling pump header - 2 x addressable LED strip headers - 2 x RGB LED strip headers - 1 x CPU cooler LED strip/RGB LED strip header - 2 x M.2 Socket 3 connectors - 4 x SATA 6Gb/s connectors - 1 x front panel header - 1 x front panel audio header - 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support - 1 x USB 3.2 Gen 1 header - 2 x USB 2.0/1.1 headers - 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) - 1 x serial port header - 1 x reset button - 1 x reset jumper - 1 x Clear CMOS jumper Panel E/S Trasero - 2 x SMA antenna connectors (2T2R) - 1 x Q-Flash Plus button - 1 x DisplayPort - 1 x HDMI port - 1 x USB Type-C® port, with USB 3.2 Gen 2 support - 1 x USB 3.2 Gen 2 Type-A port (red) - 3 x USB 3.2 Gen 1 ports - 3 x USB 2.0/1.1 ports - 1 x RJ-45 port - 3 x audio jacks |
| OtrasCaracterísticas | Almacenamiento - 4 x SATA 6Gb/s connectors - 2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU, M2B_CPU) - 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB) - RAID 0, RAID 1, and RAID 10 Audio - Realtek® Audio CODEC - High Definition Audio - 2/4/5.1/7.1-channel USB - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 1 x USB 3.2 Gen 1 port on the back panel - 3 x USB 2.0/1.1 ports on the back panel - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports available through the internal USB headers Inalámbrico - AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.2 - Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate - Intel® Wi-Fi 6E AX210 (For PCB rev. 1.1) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate LAN - Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Sistema Operativo - Windows 10 x64, Windows 11 x64 |
